Introduction

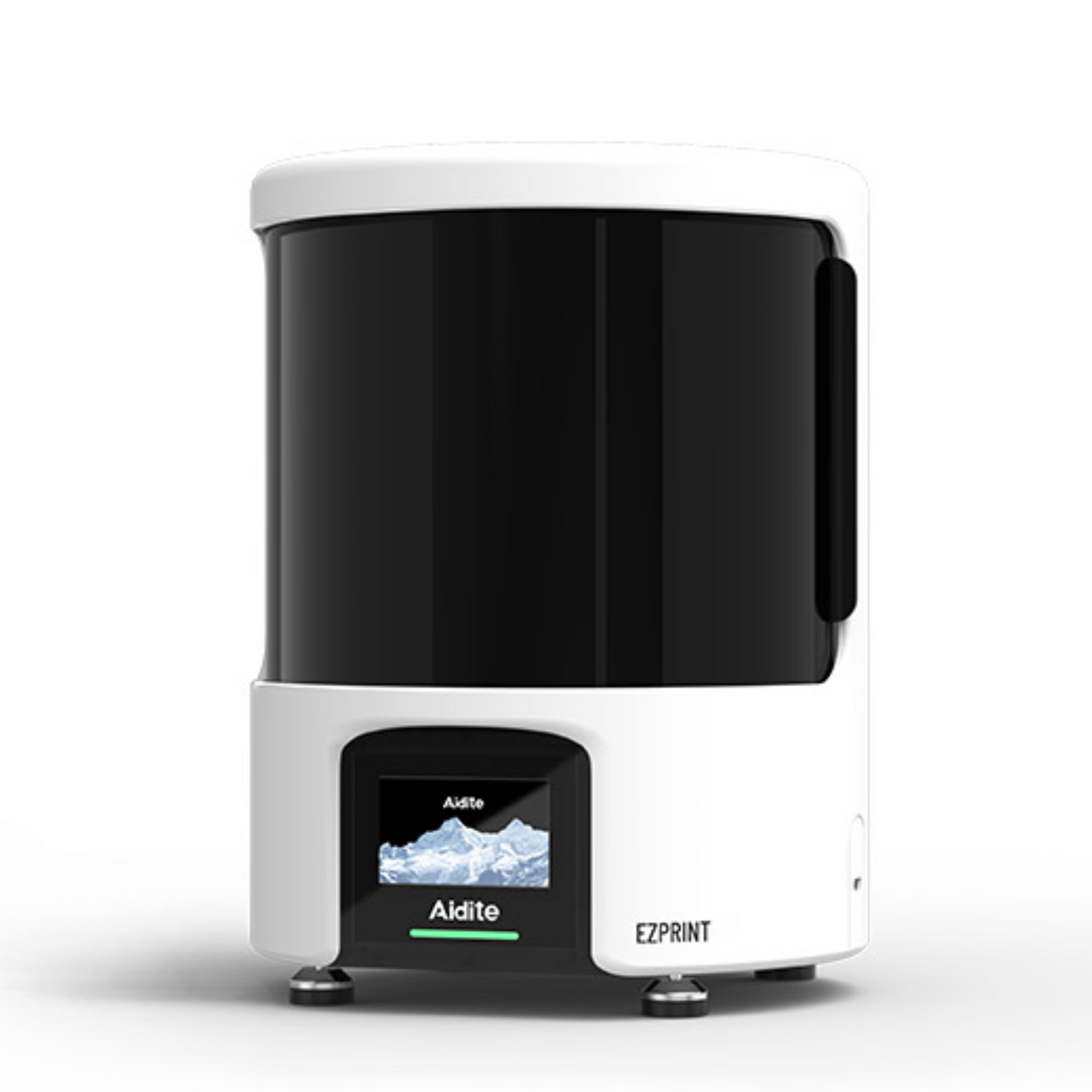

With a 16K ultra-high-resolution LCD and 14×19μm pixel size, the EZPRINT-F1 captures every detail with precision. Its high-power light source ensures 95% uniform lighting for consistent printing results. Designed for mass production, it features a large platform and high-speed printing technology for maximum efficiency.
Aidite EZPRINT-F1 Highlights
Parameter
| LCD Screen | 9.6-inch 16K high-transparency screen |
| Light Source System | 405nm COB light source + Fresnel lens |
| Build Volume | 211×118×100mm |
| Resolution | 15120×6230 |
| Pixel size | 14×19μm |
| Layer Height | 0.05-0.1mm |
| Printing Speed | Max. 60mm/h |
| Chamber heating | Temperature range 20-35℃ |
| Printing Platform | Quick-release design, surface sandblasting and oxidation treatment |
| Printing Tank | Quick-release design, ACF high-speed release film |
| Touch Screen | 5-inch color screen |
| File Format | STL, OBJ |
| Data Transmission | USB, WIFI |
| Input voltage | 100-240V, 50/60Hz |
| Rated Power | 650W |
| Printer Size | 440x400x536mm |
| Printer Weight | 23kg |
| Packing List | EZPRINT F1 3D Printer x1 CL-100 Light Curing Box x1 ZC-050M Ultrasonic cleaner x1 Model Resin x1kg |
Digital work flow
EZPRINT model solution includes our new printer EZPRINT-F1, curing box and model resin, which can meet the needs of restoration, implantation and orthodontics, and we offer a variety of colors, including yellow, almond, and gray, allowing users to choose based on their preferences.
